笔者在三年前曾经就这个命题，分别从行业应用、输入信号接口及标准、多图像显示以及终端显示分辨率等四个方向介绍了视频处理器的选型办法。但是视像领域的技术、产品的快速更新，该选型办法的资讯已经明显滞后，因此，笔者响应与时俱进的号召，在这里以旧瓶装新酒，以厦门视诚科技有限公司为代表的系列视频处理器为例，分享视频处理器的选型资讯。

As to this proposition,I have yet introduced a set of video processor selection instructions respectively from four directions as industrial applications,input signal interface and its standard,multi-image display and terminal display resolution three years ago. However,the rapid update of video technology and products has revealed a lag behind of that stereotyped selection instructions. Hereby,I appreciate the chance to take RGBlink processors for instance and share with you my latest ideas on video processor selection methods,hoping to keep the previous selection guide up with the advanced pace of this industry.

一、基于行业应用选型

One. Based on industrial application selection

目前，LED 全彩显示屏的行业应用已经进一步细分为以下四个方向。

At the moment,the industrial application of LED full color display has been further subdivided into four directions as below:

1、广告及信息显示:从拨动品牌与分销的那一小缕涟漪开始，已经从简单亮化的误区走上了资讯传播的康庄正道。同时，也推动了实时视频显示、远程信息发布、联网控制的小型化、简单化处理的需求发展。视诚科技曾经推荐了专用数字标示牌播放器加视频处理器的方案，也已经革新为数字标示牌播放器和视频处理器一体机VSP 112W，全方面支持管理员在任何可以接入网络进行访问的位置，通过管理软件，完全控制远程图像、视频、文本的发布以及实时视频输入信号的切换。

1. Advertising and Information Display: from the moment when brand effect and distribution began,simple brightening effect has turned its track to information dissemination,which at the same time pushes forward the promotion of customers’ need on Real-time video display,remote information dissemination,networking control miniaturization and simplified processing. RGBlink has ever recommended a scheme of a dedicated digital signage player plus video processors,which directed the emergence of an integrated processor as VSP 112W. RGBlink developed VSP 112W for supporting controllers to fully control the issue of remote image,video and text and control the real-time video input signals switching via managing the control software,as long as there is network available for connecting.

2、租赁与舞台演出：多以视频展示的多样化和无缝切换为基本要求，其中车展和电视台应用分别代表了两个高端应用的方向。视诚科技的8K×2K 多画面极速拼接无缝切换视频处理器VENUS X3 已经在2015年3D EXCITE 新车发布会、意大利国家电视台、广州长隆大马戏馆、2016 年中国中央电视台春节联欢晚会等数个蜚声内外的高端应用中多次验证了技术领头羊的地位。以2016年央视春晚为例，如图二，该项目使用了视诚科技产品除了 VNEUS X3外，还有视诚经典4K X 2K拼接器VSP 3600、专业级无缝切换视频处理器VSP 628PRO、DVI八进八出矩阵DXP D0808、DVI一分八分配器DXP D0108、RMS 8424S机架式监视器等形成了一整套完整的演出解决方案。

2. Rental and Stage Performance: Mostly based on diversification and seamless switching of video display,auto show and TV station application rank this direction as a high-end application. RGBlink VENUS X3 which combines the function of 8K×2K multi-image fast splitting and seamless switching has verified the position of a leader by meas of show in 3D Excite Live 2015,RAI TV station in Italy,Guangzhou Changlong Circus Museum,and CCTV Spring Festival gala in 2016 and so on. Take CCTV Spring Festival gala 2016 for instance(picture one and two),this project has formed a full set of performance solutions. by use of VENUS X3,together with VSP 3600(4K X 2K splitter),VSP 628PRO(seamless switcher and scaler),DXP D0808(8 DVI in and out),DXP D0108(1 DVI in and 8 DVI out) and RMS 8424S(rack monitor).

图一 2016年中央电视台春节联欢晚会现场

(Picture One: CCTV Spring Festival gala in 2016)

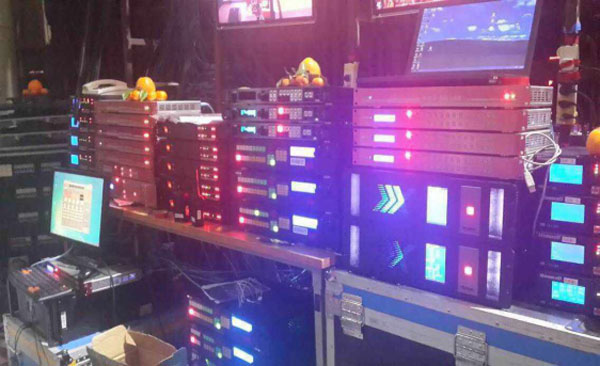

图二 2016年央视春晚后台使用设备情况

(Picture Two: CCTV Spring Festival gala backgroud)

3、运动与赛场:小到篮球场的斗型屏、到常见的足球场围栏屏，乃至F1赛场的综合应用，运动体验的极致中更蕴含了赞助商对品牌和商品诠释的巧妙用心。视诚科技提供的VENUS X2、VSP 3550S、MSP214、Driver 以及Signal Distributor，为视讯的传输架设了必要的硬件通道。

3. Sports and Racing: From bucket-type screen of the basketball court,to common football field fence screen,to F1 race terrain,the comprehensive applications of video processors in this occasions further on express sponsors’ thoughtful branding strategy over their products. RGBlink VENUS X2,VSP 3550S,MSP214,Driver and Signal Distributor have showed the talent and charm in these occasions.

4、酒店文化与会议:建筑物对外在美的单向追求，正不断的演化为内在美的实力建设的理性投资。酒店文化、会议系统藉此迎来了发展的快车道，而以各种平面显示技术相互交叠应用的视听展示，也孕育了视诚科技里程碑式产品：2画面无缝切换及预监编程切换台CP 3072S，4画面无缝切换及预编程切换台VENUS X3 LIVE的成功。

4. Hotel Culture and conferences: Architecture’s beauteousness is now not only for its external construction style but also for its internal facilities establishment,which turns out to be a kind of rational investment,promoting the hotel culture. A mixed application of various flat display technologies for Audio-video display sees its importance in the internal facilities establishment,and RGBlink CP 3072S and VENUS X3 LIVE(Multiviewer and Presentation Mixer with Multi-layers Preview Function) gains its fame in the occasions.

二、基于输入信号接口及标准选型

TWO. Based on input signals and standard selection

视像组织VESA 和SMPTE 显然不满足于1080P 高清的尺度，标准的篇幅轻轻一翻，挑开了3G 和4K×2K 的面纱。因此SDI有了3G SDI，而Displayport(DP)接口也迎来了发展的契机。视诚科技全系列视频处理器因为预研的投入，及时进行了全面升级，完成了第一时间与标准的再次接轨。

Video organizations VESA & SMPTE are no longer satisfied with 1080P definition,they have come to another height as 3G and 4K × 2K. Thus SDI is promoted to 3G SDI,and displayport (DP) comes to its era. RGBlink spares no effort to keep up with the trend and invest the best of our R&D energy and technology with a timely overall upgrade on our video processors,once again,we opportunely meet the new standard.

1. 基于输入输出分辨率点对点显示处理能力。

1)2K×1K 等级，VSP112W，VSP168S，VENUS X1 都在此列;

2)4K×1K 等级，VSP 628PRO、VSP 5162PRO、VSP 5350

3)4K×2K 等级，VENUS X1 PRO、VSP 628PRO-4K、VSP 5360-4K 为代表;

4)4K×2K 以上，VENUS X3、VENUS X2、VENUS X7 为代表;

1. Based on input and output resolution pixel-to-pixel

1) 2K × 1K level: VSP112W，VSP168S，VENUS X1

2) 4K × 1K level: VSP 628PRO、VSP 5162PRO、VSP 5350

3) 4K × 2K level: VENUS X1 PRO、VSP 628PRO-4K、VSP 5360-4K

4) 4K × 2K above level: VENUS X3、VENUS X2、VENUS X7

2. 基于3G SDI 的支持。VSP168S，VSP 628PRO，CP 3072S 以及VENUS X3 LIVE 4画面桌面式特效切换控台都在实践中检验了标准化建设的实力;

2. Based on 3G SDI. VSP 168S,VSP 628PRO,CP 3072S and VENUS X3 LIVE all greatly show the strength to meet the standard during the practice.

3. 面向Displayport(DP)接口的支持。目前厦门视诚已经拥有众多的产品实现这个应用需求，其中不乏VENUS X1 PRO、VSP 628PRO这样业界一流的专业级4K无缝切换视频处理器。

3. Based on Displayport (DP). VENUS X1 PRO,VSP 628PRO have begun its new feature for this standard.

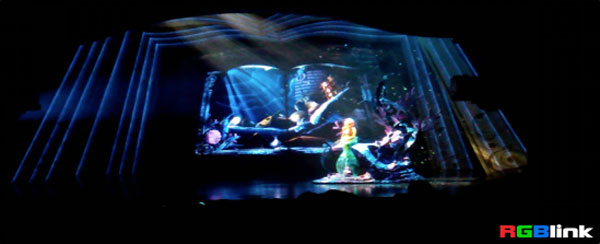

图三 香港迪斯尼故事剧场项目，VSP 628PRO绚丽画质的体现

(picture 3 Hong Kong Disneyland theater,use VSP 628PRO)

三、基于多个显示图像选型

Three,Based on multi-picture selection

斗型屏、租赁演出屏、监控屏、巨屏一个个应用的开幕，触动了小点间距无缝拼接和多画面显示的应用开关。视诚科技的视频处理器涵盖了单画面到常用的16 画面及以上的应用范畴。代表的产品即为视诚维纳斯系列处理器，包括VENUS X1、VENUS X2、VENUS X3、VENUS X7以及维纳斯更高级别的产品。

Along with the emergence of bucket-type screen,leasing performance screen,monitor screen,giant screen and so on,multi-picture display video processor comes along. RGBlink video processor contains application on single picture processing to eight or more pictures processing. Like VENUS X1,VENUS X2,VENUS X3,VENUS X7 and high level product.

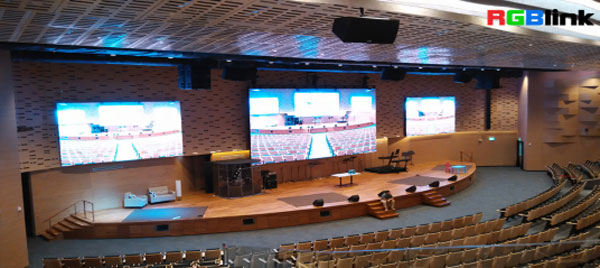

图四 新加坡Grace Assembly of God教堂主会场项目

(Picture four,Grace Assembly of God in Singpore)

四、基于终端显示屏分辨率选型

Four,Based on terminal display resolution selection

以全彩显示屏作为“创作”画布的灵感不断激涌而出，从单一点间距的显示屏应用到多点间距显示屏混用，以及多平面显示技术的混合使用，视诚科技拥有众多自主研发生产不同应用的设备，专业无缝切换视频处理器、多画面无缝切换控台、超级拼接器、专业矩阵、小型格式转换器、远程传输设备、机架式多联监视器、发送卡机箱、专业配件、专业配线等等，成熟完备的产品线、强大的研发团队、热情周到的国内国际售前售后团队，在此类应用中完全可以给出让您完全放心的一站式解决方案。

Full-color display has sparked inspiration all the way. From single pixel space display to a mixture of muti pixel space display,to a mixture of multi displays technology,RGBlink is together on the way. Seamless switchers and scalers,multi-viewers,spliters,routers and distributions,mini converters,mini extenders,preview monitors,LED screen sender cards,accessories,cables and so on. together form an integrated solution for this application.

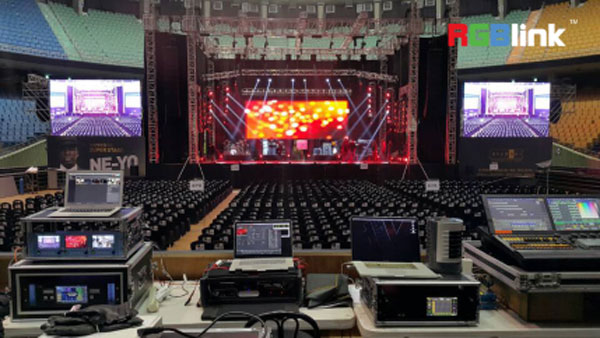

图五 美国歌手Ne-YO全球巡回演唱会韩国现场

(Picture five,American singer Ne-YO global tour live in South Korea)

视像工作者势必在3D展示、动态存储以及更高的综合应用领域揭开更多神秘的面纱。此文仍然献给在视像解决方案中探求答案的工作者!此文仍然向视像行业的工作者致敬!

Video industry is bound to rise to new heights such as 3D show,dynamic storage,and other higher integrated applications. This article is also for expressing our respects to persons who working on promoting new solutions and technologies!
